Ideal Small Arms - Rimfire Magazine Troubleshooting

Ideal Small Arms rimfire 10 & 15 capacity magazines are suitable for 14 different makes & models of firearms.

  • Brno Models 1, 2 & 5
  • CZ452, CZ453, CZ455, CZ457, CZ512 & CZ515
  • Cogswell & Harrison Certus
  • Norinco JW15 & JW25
  • Steyr Zephyr II
  • Lithgow Crossover LA101

Occasionally a magazine may randomly require a small adjustment to function perfectly.  There can be any number of reasons why; sometimes machining variations between different manufacturers; sometimes aftermarket stocks or accessories may create a magazine feeding issue.   All random.

The fix is easily achievable; either reverse the main spring or adjust the follower.

Start with a download.

Please download our information sheet with a template to help adjust follower.   Please read information sheet before disassembly.

Videos

Please click on links below to view.

Ideal Small ArmsRimfire 10 capacity Magazine
Disassembly

A one minute video showing how to disassemble 10 capacity magazine.

Click here to view video.

Ideal Small ArmsRimfire 10 or 15 capacity magazine.

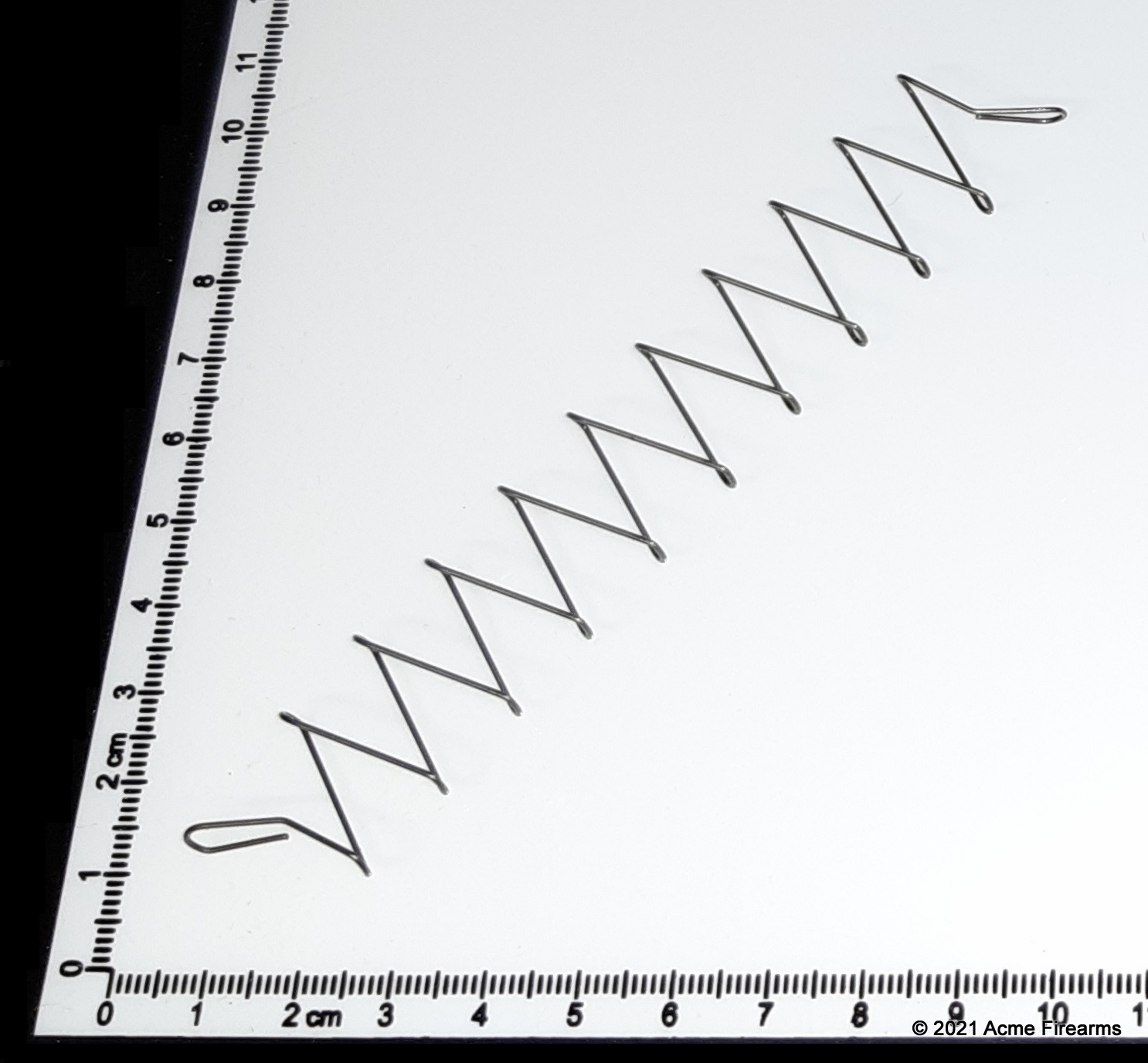

Reverse Main Spring

A 30 second video showing how to reverse main spring.

Click here to view video.

Ideal Small Arms Rimfire 10 capacity Magazine
Assembly

A two minute video showing how to assemble 10 capacity magazine.

Click here to view video.

Ideal Small Arms Rimfire 15 capacity Magazine
Disassembly

A one minute video showing how to disassemble 15 capacity magazine.

Click here to view video.

Ideal Small Arms Rimfire 15 capacity magazine
Assembly

A two minute video showing how to assemble 15 capacity magazine.

Click here to view video.

Ideal Small Arms Rimfire Magazine

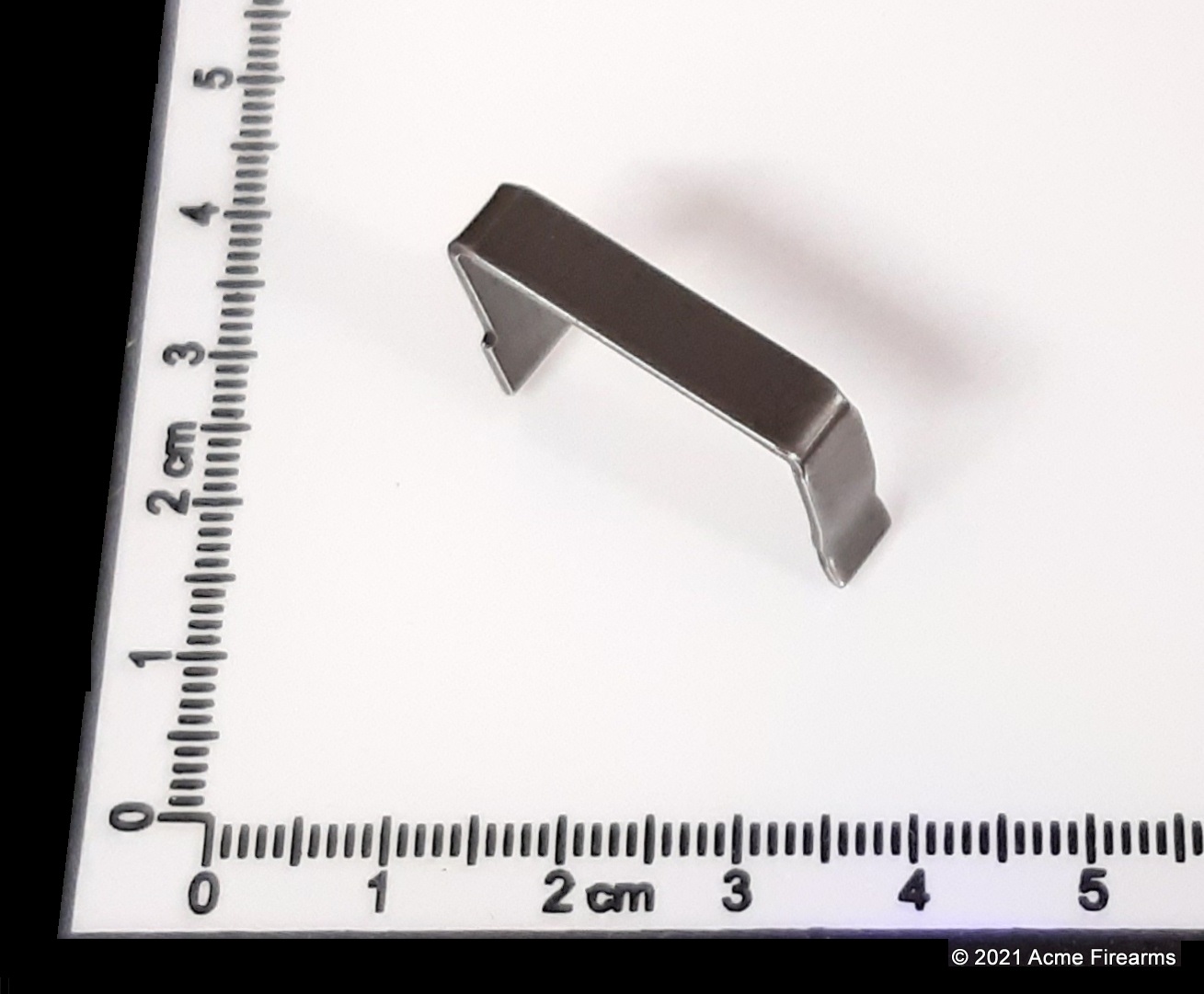

Adjust Follower

A two minute video showing how to adjust follower.

Click here to view video.

Ideal Small ArmsRimfire Magazine

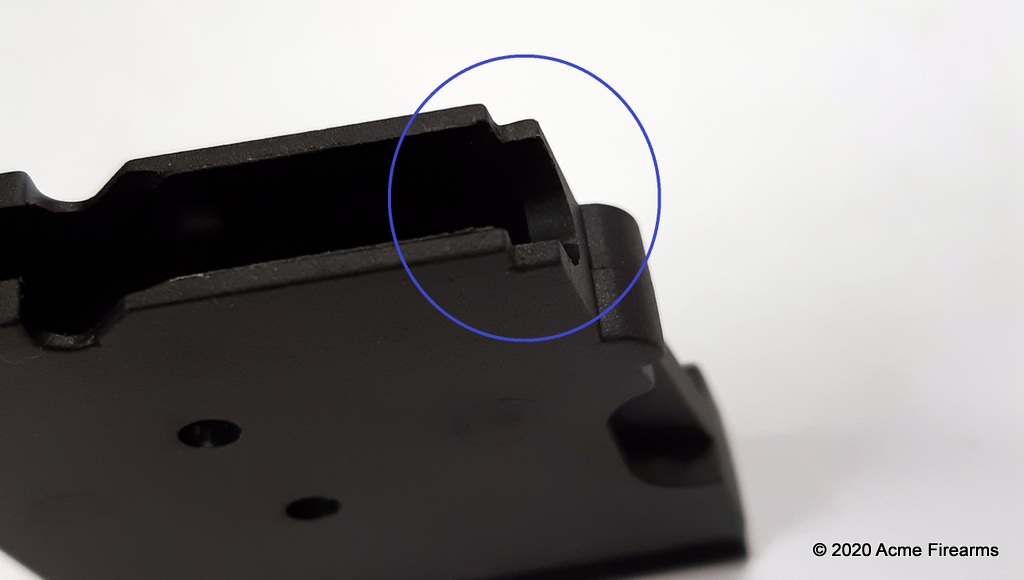

Adjust Magazine to fit into Magazine Well

A two minute video showing how to adjust magazine to slot securely into magazine well.

Click here to view video.
